LCD Monitor Screen SAD1030KH

  • Frameless Housing.

  • Screen definition: 1280*800.

  • Support 1080P video solution.

  • Full view angle.

  • Build with HDMI input.

  • With CE FCC ROHS certification.


Contact Us
Features Tech Spec Download

LCD Monitor Screen Features

  • 10.1'' Open Frame HD Video Screen

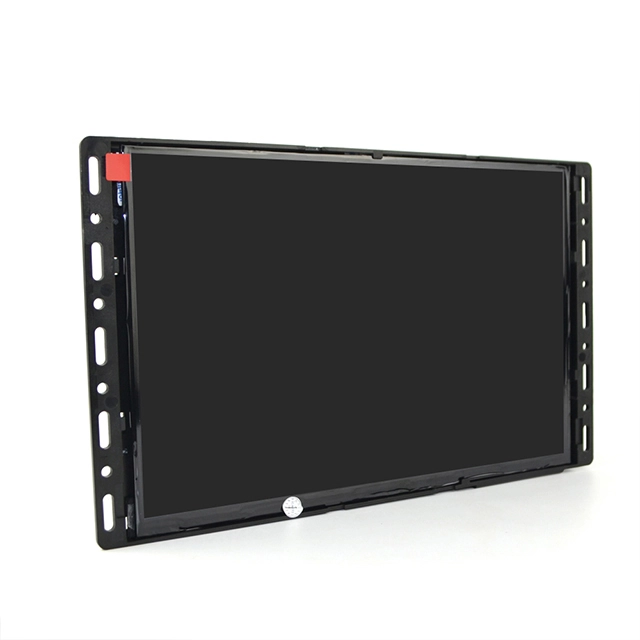

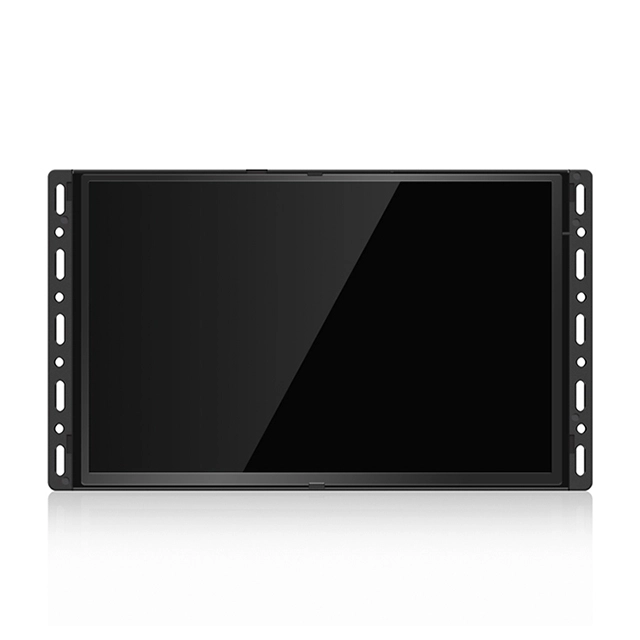

    10.1'' Open Frame HD Video Screen

    Open frame design with ''ears'' on two sides which makes it more easy to integrate into POP displays.

  • 10.1'' Open Frame HD Video Screen
    10.1'' Open Frame HD Video Screen

    10.1 inch open frame HD LCD advertising video screen.
    10.1 inch IPS full view angle panel.
    Support 1920*1080 video display.
    Optional function:
    1. Motion sensor (auto power on / off with or without detecting moving body)
    2. Push button (to press the button for playing the files in designated)

  • 10.1'' Open Frame HD Video Screen
    10.1'' Open Frame HD Video Screen

    Build with HDMI input.

    SD & USB interface for content management.

    Auto copy contents from USB to SD card to update contents.

    Auto power on / power off at a scheduled time.


  • 10.1'' Open Frame HD Video Screen
    10.1'' Open Frame HD Video Screen

    Kerchan 10.1'' Open Frame HD Video Screens are widely used in retail stores, meeting rooms, restaurants, bank, supermarket, airport, hospital and any commercial environment.

LCD Monitor Screen Tech Spec

ModelSAD1030KHShell colorStandard: black
Open Frame or EnclosedOpen FrameLCD Panel10.1inch
Resolution1280*800Display Ratio16:10
Brightness220cd/m2Contrast1000:1
Colour16.7MVisible Angle178/178
Response Time8msLife Time(hrs)>20000 H
Visible Area216.96×135.6mm(H×V)Outline dimension259*153.6*25.6mm
CPUTSUMV59XUGPU/
Memory/ROM NAND flash/
Decoded ResolutionSupport 1080PRTC Real-time ClockSupport
Switch Time SettingSupportSystem UpdateU flash disk update

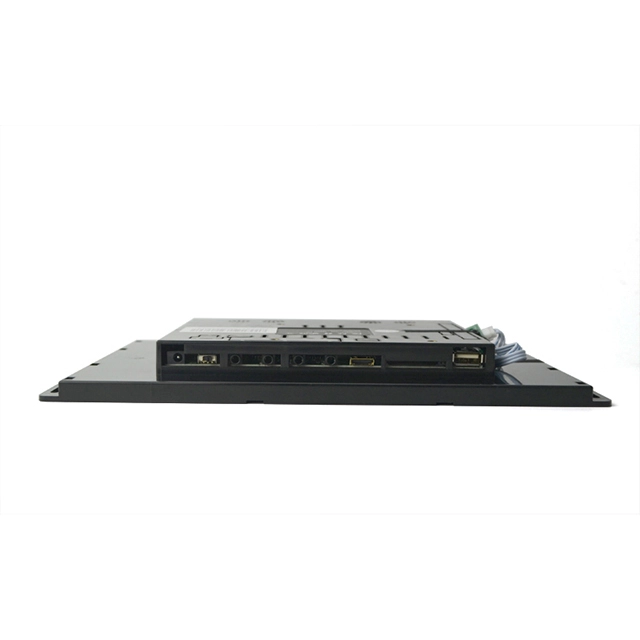

OSMstar TV NosExternal InterfaceDC IN/DC-SW/Earphone*4/HDMI in/SD/USB
Touch Panel/Camera/
Ethernet Support/Speaker/
External PortSupport SD/U flash diskInputAC 100-240V
OutputDC 12V/2APower consumption(Watt)≤7W
Standby(Watt)≤1WMaterialABS material injection process
Installation75*75mm VESA Wall MountImage FormatJPEG/BMP/GIF/PNG
Audio FormatMP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)Video FormatMPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC...
Control MethodRemote controlDefault LanguageEnglish
Menu LanguageSupport Chinese, EnglishStorage Temperature0℃~40℃
Working Temperature-20℃~55℃Storage Humidity10%-75%
Working Humidity20%-80%RHProduct Weight(N.W. )0.8kg
Plug TypesUS, EU, AU, UK OptionalPackage SizeA single package: 235*60*428mmBulk packages: 575*410*210mm
Packaging16pcs/Package Package Weight: 16kg (Reference Only)AccessoriesUser Guide, Instruction Book, Warranty, Desiccant
Optional1. Motion Sensor2. Push ButtonNotes/
