LCD Monitor Screen SAD1560KH

  • Frameless Housing.

  • Screen definition: 1920*1080.

  • Support 1080P video solution.

  • Full view angle.

  • Build with HDMI input.

  • With CE FCC ROHS certification.


Contact Us
Features Tech Spec Download

LCD Monitor Screen Features

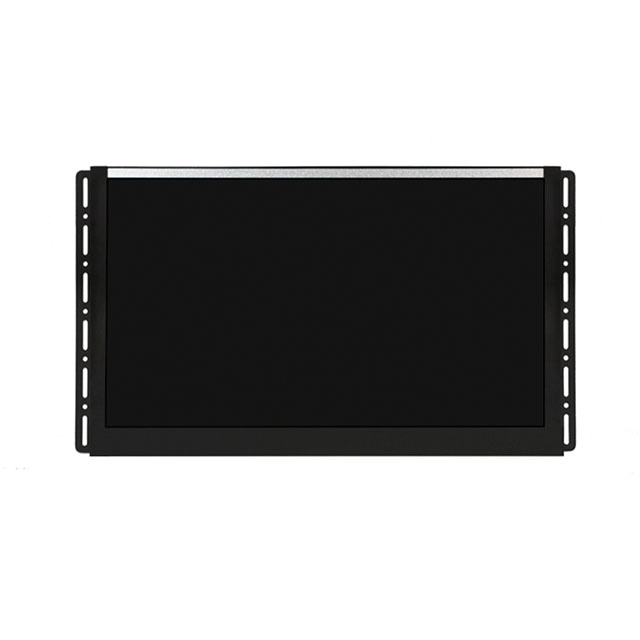

  • 15.6'' Open Frame HD Video Screen
    15.6'' Open Frame HD Video Screen

    Open frame design and there are "ears" on each side of the monitor, which ensure it can be integrated into POP displays more easily.


  • 15.6'' Open Frame HD Video Screen
    15.6'' Open Frame HD Video Screen

    15.6 inch open frame HD LCD advertising video screen.
    15.6 inch IPS full view angle panel.
    Support 1920*1080 video display.
    Optional function:
    1.Motion sensor (auto power on / off with or without detecting moving body)
    2.Push button (to press the button for playing the files in designated)

  • 15.6'' Open Frame HD Video Screen
    15.6'' Open Frame HD Video Screen

    Support content manage via USB & SD card.

    Build with HDMI input.

    Automatically playing videos repeatly from USB or SD card after power on.

    Auto update contents by copying data from USB to SD card.

    Auto power on/ off at a scheduled time.


  • 15.6'' Open Frame HD Video Screen
    15.6'' Open Frame HD Video Screen

    Kerchan 15.6" Open Frame HD Video Screens are already being used in many areas like  retail stores, restaurants, hospital, supermarket, meeting rooms, bank, airport, and any commercial environment.

LCD Monitor Screen Tech Spec

ModelSAD1560KHShell ColorStandard: black
Open Frame or EnclosedOpen FrameLCD Panel15.6inch
Resolution1920*1080Display Ratio16:9
Brightness220cd/m2Contrast800:1
Colour16.7MVisible Angle178/178
Response Time8msLife Time(hrs)20000 H
Visible Area344.16*193.59mm(H×V)Outline dimension395.65*228*28.5mm
CPUTSUMV59XUGPU/
Memory/ROM NAND flash/
Decoded ResolutionSupport 1080PRTC Real-time ClockSupport
Switch Time SettingSupportSystem UpdateU flash disk update
OSMstar TV NosExternal InterfaceDC IN/DC-SW/Earphone*4/HDMI in/SD/USB
Touch Panel/Camera/
Ethernet Support/Speaker/
External PortSupport SD/U flash diskInputAC 100-240V
OutputDC 12V/2APower consumption(Watt)≤11W
Standby(Watt)≤1WMaterialABS material injection process
Installation75*75mm VESA Wall MountImage FormatJPEG/BMP/GIF/PNG
Audio FormatMP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)Video FormatMPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC...
Control MethodRemote controlDefault LanguageEnglish
Menu LanguageSupport Chinese, EnglishStorage Temperature-20℃~60℃
Working Temperature-20℃~55℃Storage Humidity10%-75%
Working Humidity20%-80%RHProduct Weight(N.W. )1.5kg
Plug TypesUS, EU, AU, UK OptionalPackage SizeA single package: 336*88*453mmBulk packages: 509*442*280mm
Packaging10pcs/Package Package Weight: 18kg (Reference Only)AccessoriesUser Guide, Instruction Book, Warranty, Desiccant
Optional1. Motion Sensor 2. Push ButtonNotes/
