Plug and play with the loop video.
Auto copy from USB to SD card.
Open frame design, easy to integrate into POP display.
Basic version, no need to pay for any unnecessary function.
With CE FCC ROHS certification.

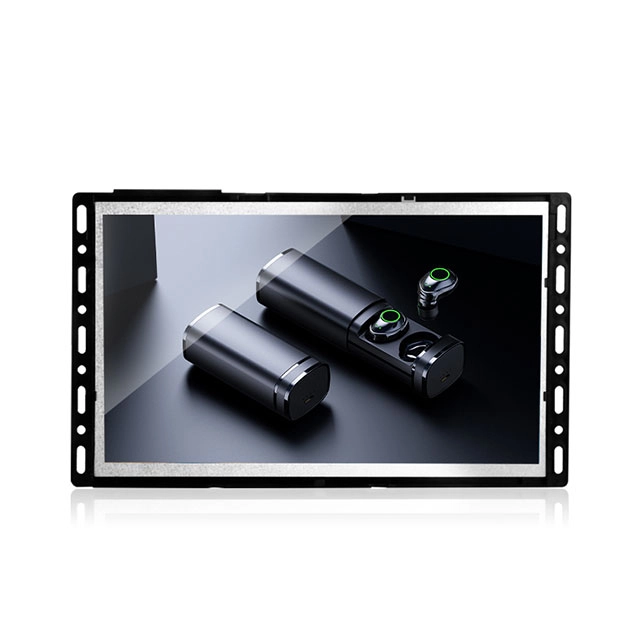

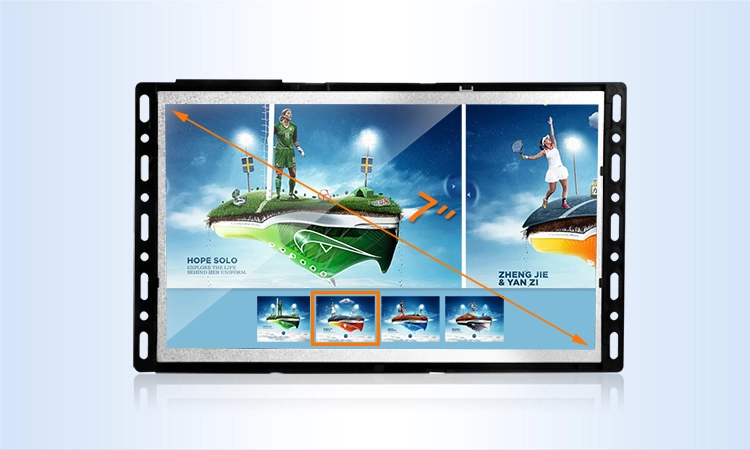

7 inch simple & cost effective open frame LCD monitor which is perfect for small form and low cost applications.
Open frame design make it is easy to integrate into POP display.
Plug and play with loop video.

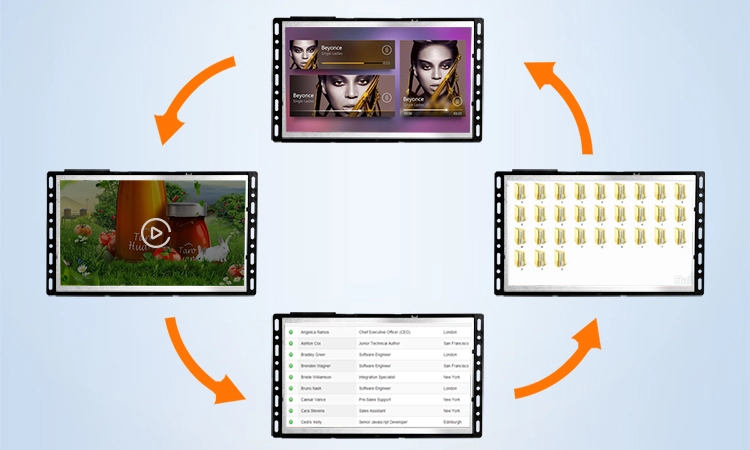

Play mode, single looping, folder looping, list looping.

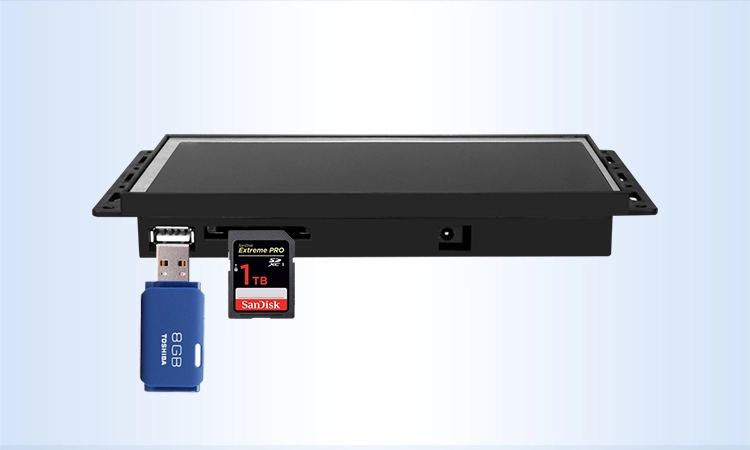

Auto update contents to SD card by inserting a USB stick.

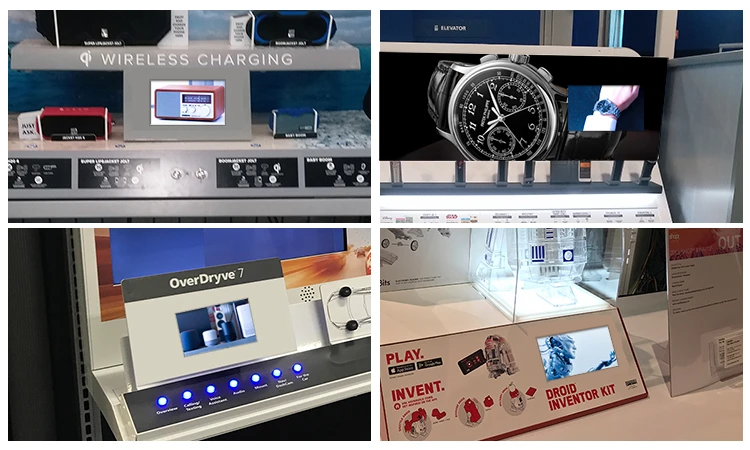

Kerchan 7 inch Basic Open Frame Video Screens are largely used in the field of retail stores, meeting rooms, restaurants, bank, supermarket, airport, hospital etc. to promote upcoming events or show particular marketing message.
| Model | SAD0706K | Shell color | Standard: black |
| Open Frame or Enclosed | Open Frame | LCD Panel | 7inch |
| Resolution | 800*480 | Display Ratio | / |
| Brightness | 220cd/m2 | Contrast | 500:1 |
| Colour | 16.7M | Visible Angle | 70/70/50/70 |
| Response Time | 8ms | Life Time(hrs) | >20000 H |
| Visible Area | 154.08*85.92mm(H×V) | Outline dimension | 188.6*103.6*23.7mm |
| CPU | ATJ229R2 | GPU | / |
| Memory | SDRAM 512M | ROM NAND flash | / |
| Decoded Resolution | Support 1080P | RTC Real-time Clock | Support |
| Switch Time Setting | Support | System Update | SD card update |

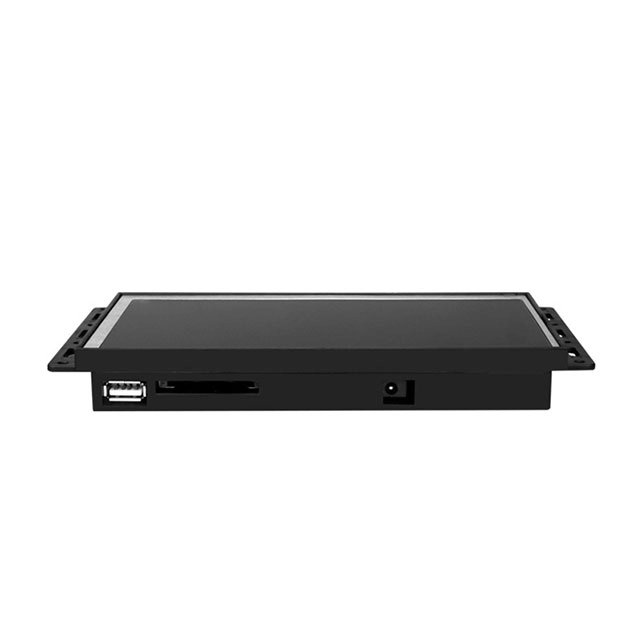

| OS | UCOS | External Interface | DC IN/SD/USB |
| Touch Panel | / | Camera | / |
| Ethernet Support | / | Speaker | Size: ∅30MM, speakers 8R 1W*2 |
| External Port | Support SD/U flash disk | Input | AC 100-240V |
| Output | DC 5V/1.5A | Power consumption(Watt) | ≤4W |
| Standby(Watt) | ≤1W | Material | ABS material injection process |

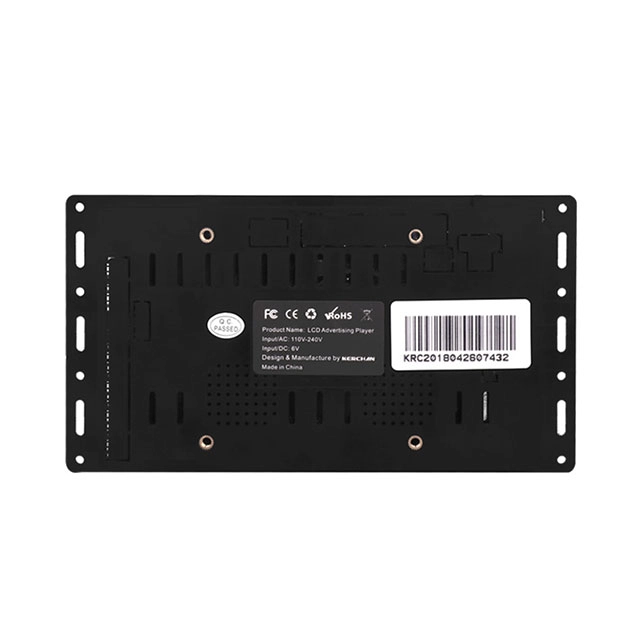

| Installation | 75*75VESA Wall Mount | Image Format | JPEG/BMP/GIF/PNG |
| Audio Format | MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment) | Video Format | MP4/RMVB/AVI/H.264 |
| Control Method | / | Default Language | English |
| Menu Language | Support Chinese, English | Storage Temperature | -20℃~60℃ |
| Working Temperature | -20℃~55℃ | Storage Humidity | 10%-75% |
| Working Humidity | 20%-80%RH | Product Weight(N.W. ) | 0.8kg |
| Plug Types | US, EU, AU, UK Optional | Package Size | A single package: 225*55*357mmBulk packages: 565*441*166mm |
| Packaging | 22 pcs/Package Net weight: 20kg (offer reference only) | Accessories | User Guide, Instruction Book, Warranty, Desiccant |
| Optional | / | Notes | This product can't support low power consumption and push button, no remote control, no human sensor, just support auto copy function and looping video after power on |
