LCD Monitor Screen SAD0705KH

  • Frameless Housing.

  • Screen definition: 1024*600.

  • Support 1080P video solution.

  • Full view angle.

  • Build with HDMI input.

  • With CE FCC ROHS certification.


Contact Us
Features Tech Spec Download

LCD Monitor Screen Features

  • 7'' Open Frame HD Video Screen

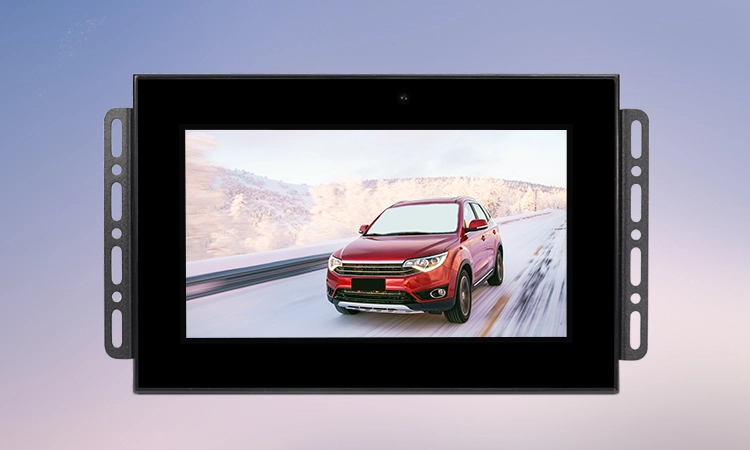

    7'' Open Frame HD Video Screen

    Automatically play videos on a constant loop from USB or SD card after power on.

    Automatically copy contents from USB to SD card to refresh contents.

    Automatically power on / power off at a pre-set time.


  • 7'' Open Frame HD Video Screen
    7'' Open Frame HD Video Screen

    Support playout of 1920*1080 video.

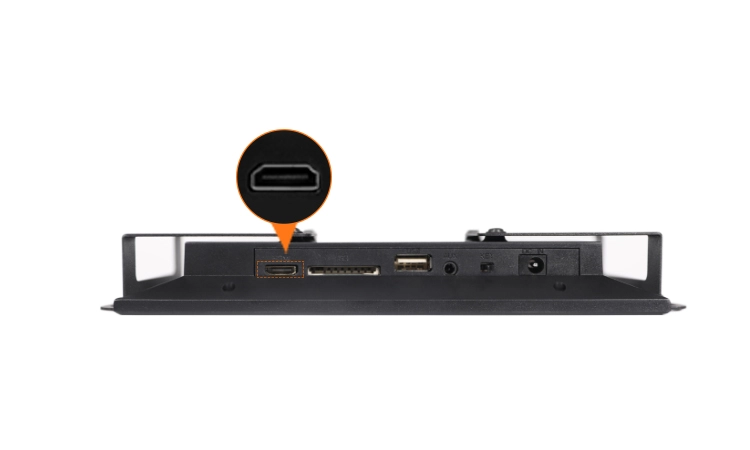

    Come with HDMI input.

    Optional features:

    1. Push button( can play the specified file by pressing the button).

    2. Motion sensor (auto power on / off with or without detecting moving body).


  • 7'' Open Frame HD Video Screen
    7'' Open Frame HD Video Screen

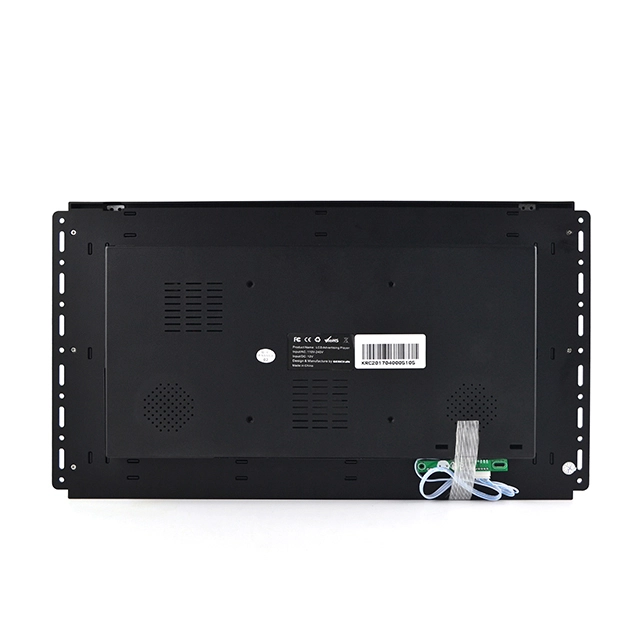

    There are two different installation ways:

    1. 75*75 VESA wall mount.

    2. Mounted through the holes on both sides.


  • 7'' Open Frame HD Video Screen
    7'' Open Frame HD Video Screen

    Kerchan 7" Open Frame HD Video Screens have been successfully applied in a wide ranges of fields including retail stores, meeting rooms, bank, restaurants, supermarket, airport, hospital etc.


LCD Monitor Screen Tech Spec

ModelSAD0705KHShell colorStandard: black
Open Frame or EnclosedOpen FrameLCD Panel7inch
Resolution1024*600Display Ratio/
Brightness220cd/m2Contrast800:1
Colour16.7MVisible Angle178/178
Response Time8msLife Time(hrs)>20000 H
Visible Area154.21*85.92mm(H×V)Outline dimension188*103*23mm
CPUTSUMV59XUGPU/
Memory/ROM NAND flash/
Decoded ResolutionSupport 1080PRTC Real-time ClockSupport
Switch Time SettingSupportSystem UpdateU flash disk update
OSMstar TV NosExternal InterfaceDC IN/DC-SW/Earphone*4/HDMI in/SD/USB
Touch Panel/Camera/
Ethernet Support/Speaker/
External PortSupport SD/U flash diskInputAC 100-240V
OutputDC 12V/2APower consumption(Watt)≤6W
Standby(Watt)≤1WMaterialABS material injection process
Installation75*75VESA Wall MountImage FormatJPEG/BMP/GIF/PNG
Audio FormatMP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)Video FormatMPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC...
Control MethodRemote controlDefault LanguageEnglish
Menu LanguageSupport Chinese, EnglishStorage Temperature-20℃~60℃
Working Temperature-20℃~55℃Storage Humidity10%-75%
Working Humidity20%-80%RHProduct Weight(N.W. )0.8kg
Plug TypesUS, EU, AU, UK OptionalPackage SizeA single package: 225*55*357mmBulk packages: 565*441*166mm
Packaging22pcs/Package Net weight: 20kg (offer reference only)AccessoriesUser Guide, Instruction Book, Warranty, Desiccant
Optional1. Motion Sensor;  2. Push buttonNotes
