KERCHAN magic cube series led displays are amazing led screens with innovative and unique cube shape designs, common types include four sides, five sides, and six sides cube displays. Get rid of conventional flat screens, they can provide the viewer incomparable 3D vision experience, which is widely used in various fields like retail stores, gymnasiums, commercial buildings, squares, stations, star hotel TV stations, waiting for halls, bars, banks, port and so on.

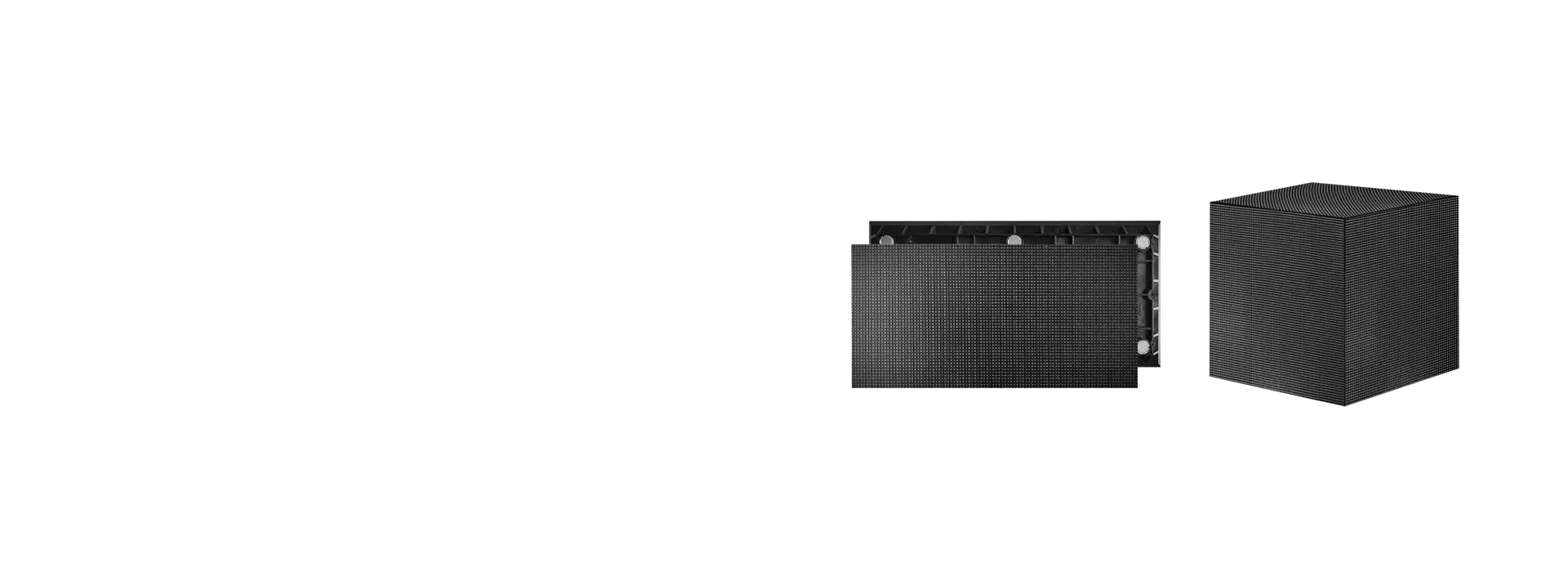

  • Magic Cube LED Video Display Information

    Magic Cube LED Video Display Information

    Pixel Density (dots/m2): 160000
    Pixel Density (dots/m2): 160000
    Module Size (mm): 240x120x14.6 (Width x Height x Thickness)
    Module Size (mm): 240x120x14.6 (Width x Height x Thickness)

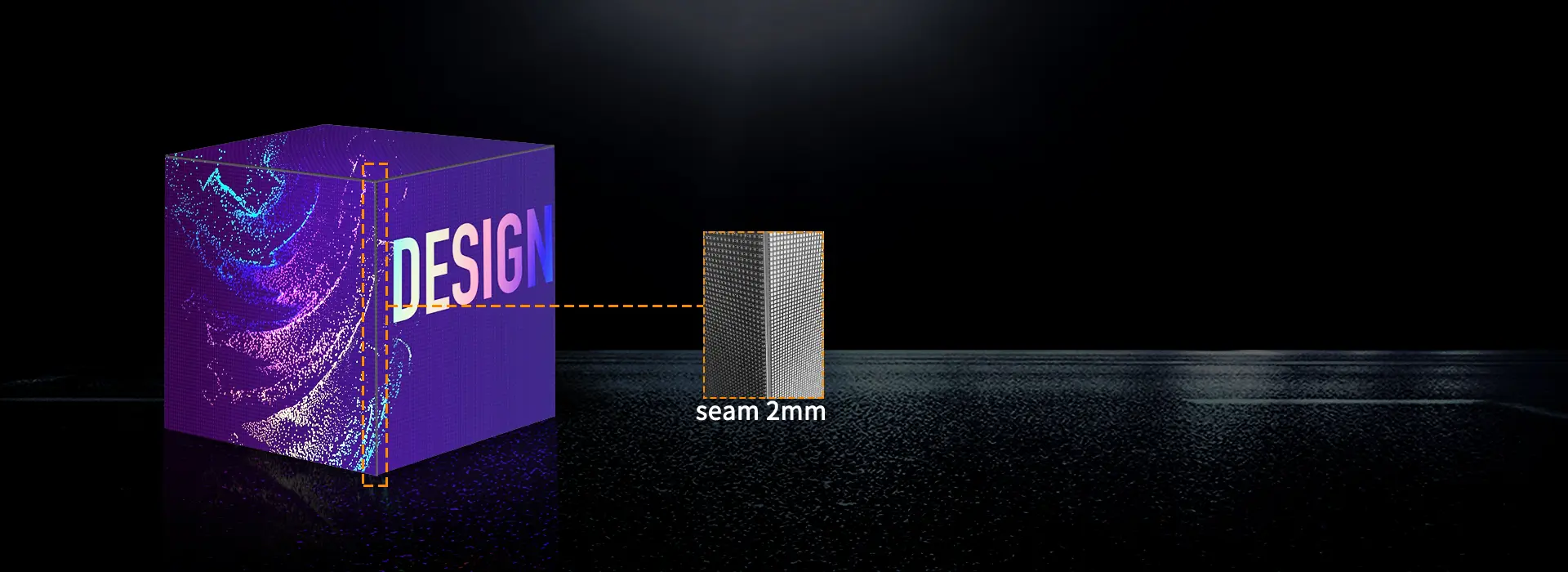

  • Far Small Seam Than Conventional Cube Screen

    Far Small Seam Than Conventional Cube Screen

    The seam between two panels is reduced to 2mm to achieve a seamless and smooth display of videos. The regular seam of a conventional cube screen is 4mm, exactly what the Kerchan cube display is trying to avoid.

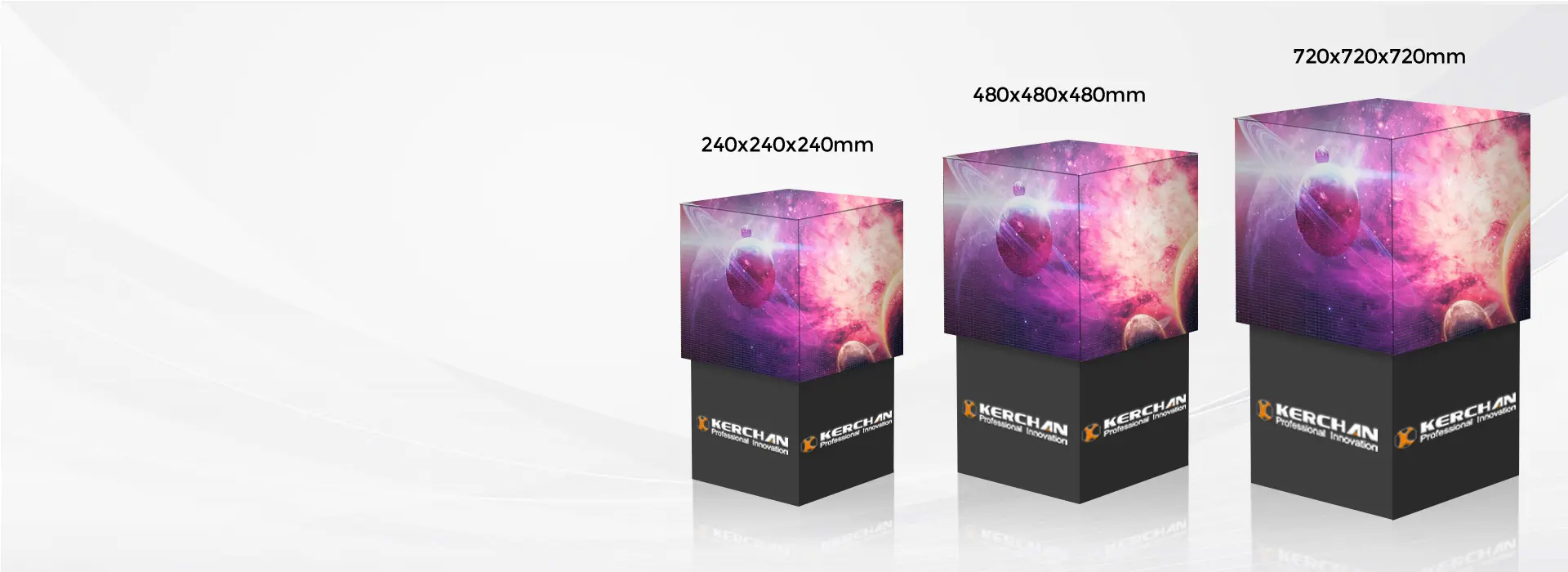

  • Various Sizes Can Be Selected and Customized

    Various Sizes Can Be Selected and Customized

    A wide range of sizes can be customized based on customers' requirements.

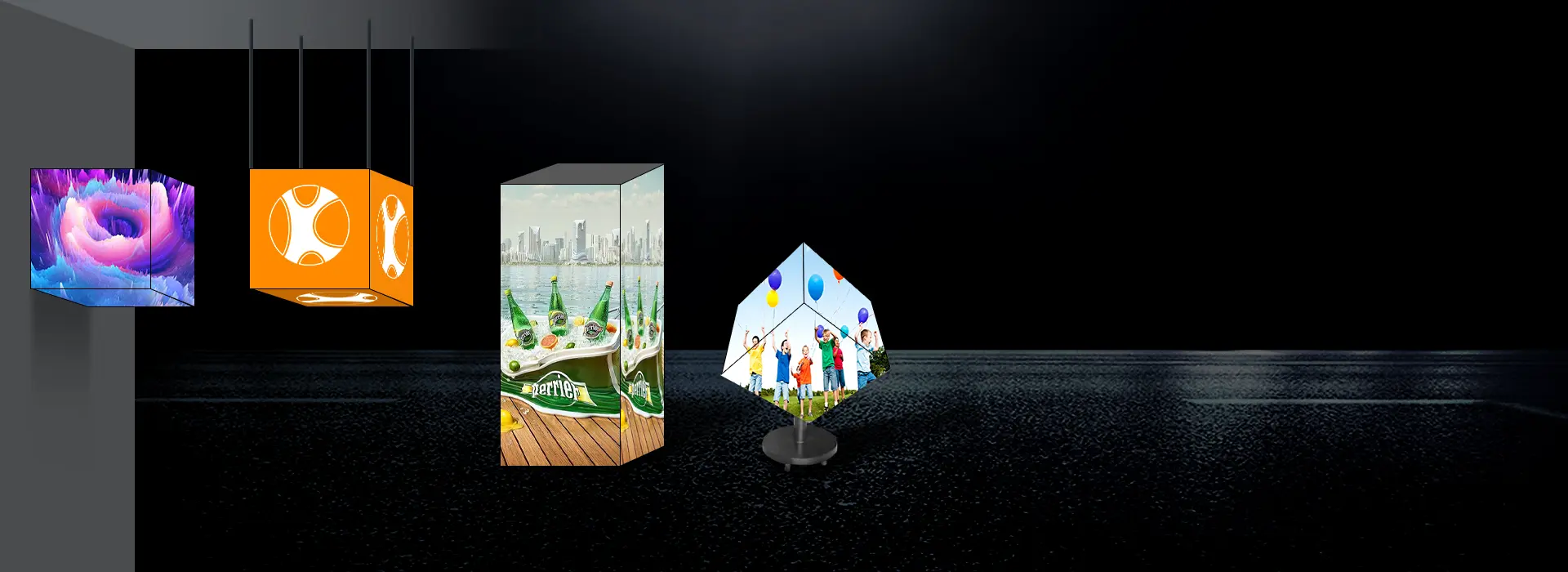

  • Support Multiple Installation

    Support Multiple Installation

    Wall mounting, hanging, and vertical install available

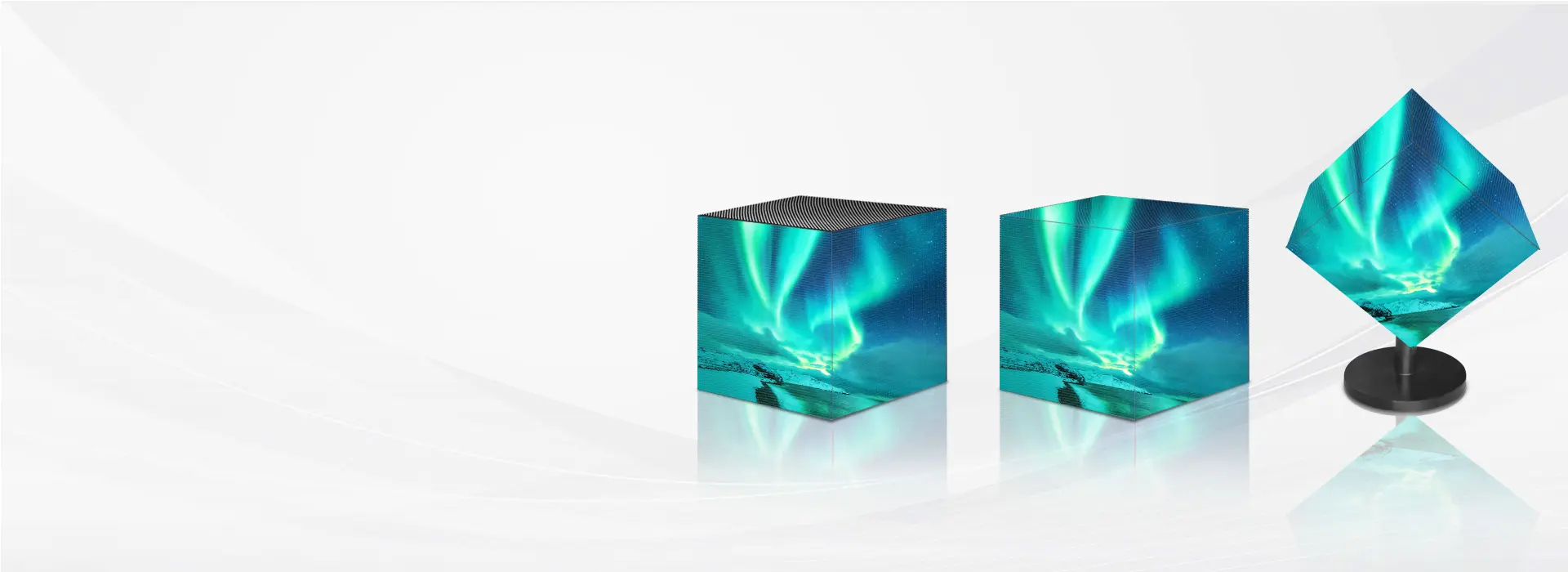

  • Various Types of Cube Screens can Be Created

    Various Types of Cube Screens can Be Created

    Adopting special treatments for each displaying unit to construct various types of cube screens containing different numbers of faces, like four faces, five faces, six faces, etc.

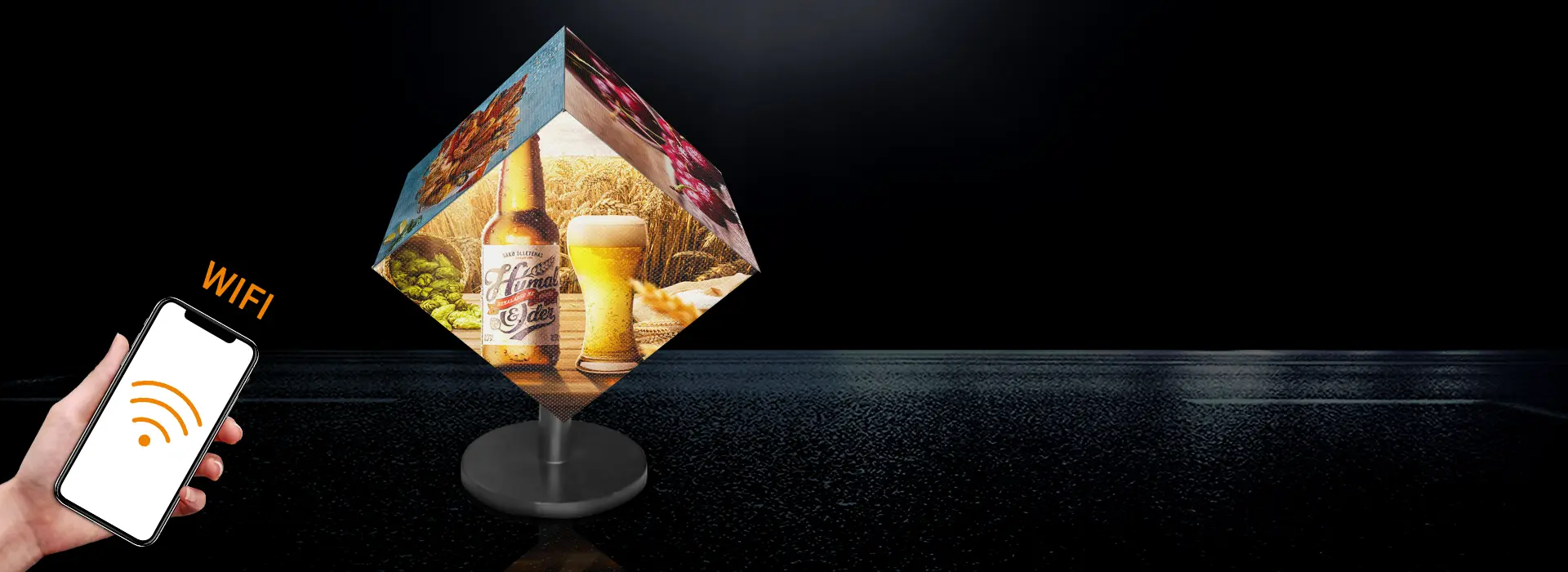

  • Synchronous and Asynchronous Display

    Synchronous and Asynchronous Display

    Support synchronous and asynchronous display mode,can be remotely controlled via WIFI


Magic Cube LED Video Display Application
  • Magic Cube LED Video Display Application

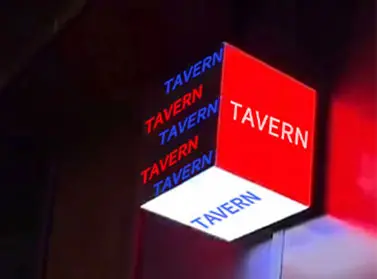

    Bar
  • Magic Cube LED Video Display Application

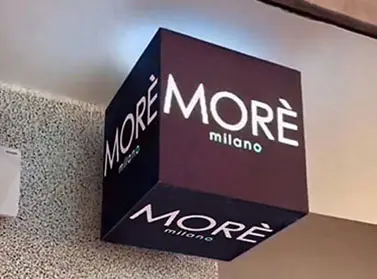

    Small shop
  • Magic Cube LED Video Display Application
    Shopping Mall
  • Magic Cube LED Video Display Application

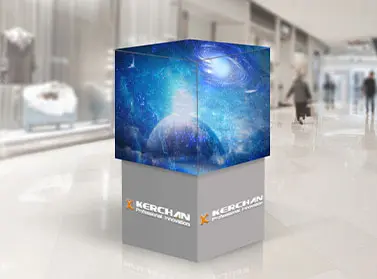

    Retail Chain Store
Tech Spec
Magic Cube LED Display Parameters
ItemMagic Cube LED Video DisplayPixel Configuration1R1G1B Full Color
EncapsulationSMD1515Pixel Density160000dots/m2
Module Size240x120x14.6mm (Width x Height x Thickness)Module Resolution96x48dots
Scan Mode24SStandard Driver ICICN2153
Refresh Rate3000-3840HzFrame Rate60Hz
Gray Scale14bitData Interface TypeHUB75
Module Back Cover MaterialsPC (Polycarbonate)Module Weight160 g
Cabinet SizeCan be ODM freely upon module sizesCabinet MaterialPowder Coated Sheet Metal Steel Cabinet
Cabinet Evenness≤ 0.3mmIP Protection GradeIP30
Assembly Maintenance TypeFront & Rear Assembly / MaintenanceBrightness750 cd
Color Temperature10000-12000 KBrightness Evenness≥96%
Horizontal Vertical View AngleX:160° / Y:140°Contrast Ratio'6000:1
Module Input Voltage DC4.2V-5VModuel Maximum Current DC2.5A
Module Maximum Power Consumption12.5w/pcsWorking Input Voltage AC110-240V
Peak Power Consumption430w/m2Average Power Consumption125w/m2
TypicalLife Span100000hrsWorking Temperature15—45℃
Working Humidity20—85%RH (No Condensation)Notes/
