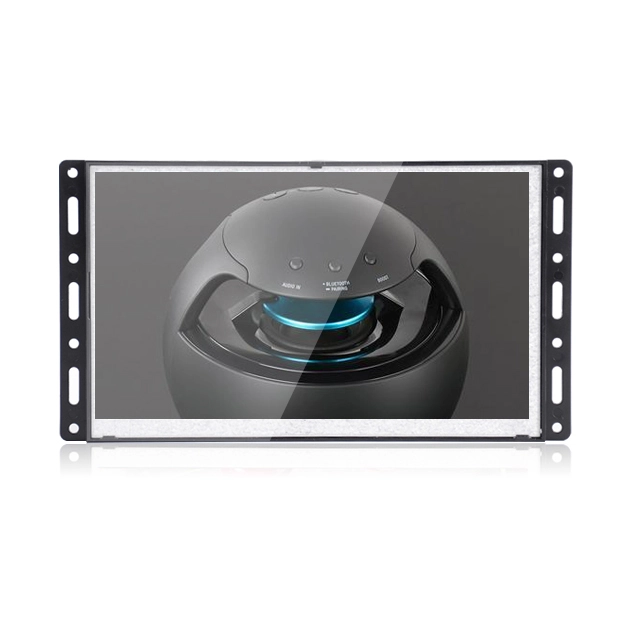

LCD Monitor Screen SAD0705K

  • Plug and play with the loop video. Auto copy from USB to SD card.

  • Open frame design, easy to integrate into the POP display.

  • Low power consumption. Enable it to be powered by batteries.

  • With CE FCC ROHS certification.

Contact Us
Features Tech Spec Download

LCD Monitor Screen Features

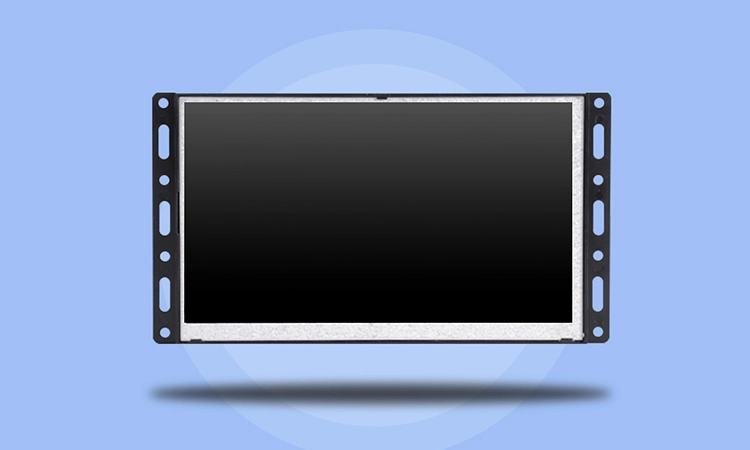

  • 7 inch Basic Open Frame Video Screen
    7 inch Basic Open Frame Video Screen

    7 inch simple & cost effective open frame LCD monitor which is perfect for small form and low cost applications.

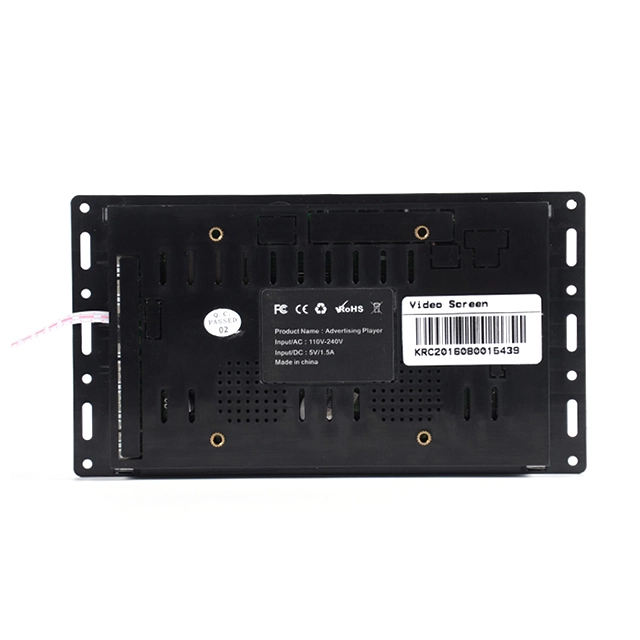

    Open frame design with "ears" on two sides, which is easy to integrate into POP display and kiosk.

  • 7 inch Basic Open Frame Video Screen
    7 inch Basic Open Frame Video Screen

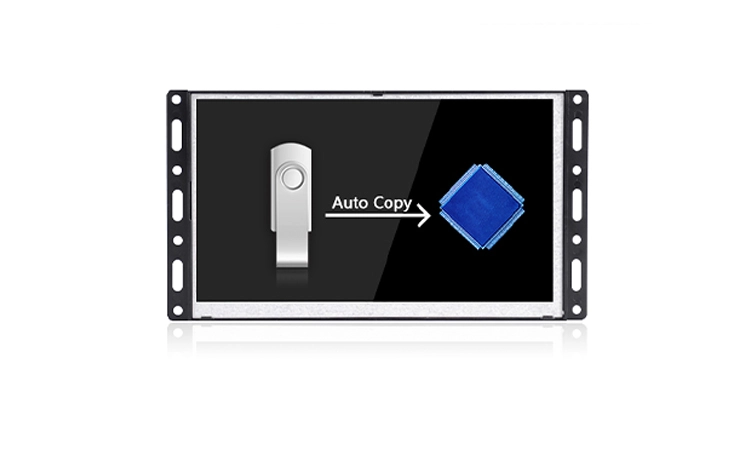

    Auto copy contents from USB to SD card to update contents.

    Auto copy videos from USB or SD card after power on.

    Auto play and repeat files after power on.

  • 7 inch Basic Open Frame Video Screen
    7 inch Basic Open Frame Video Screen

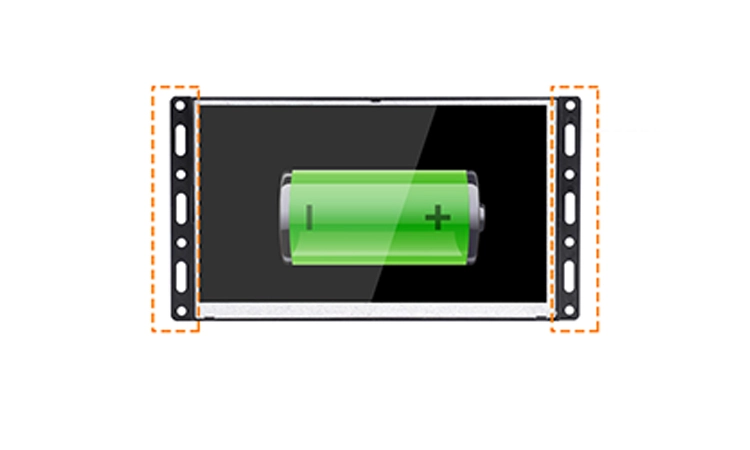

    Low power consumption: 1mah for standby mode. Enable it to be powered by batteries. This could greatly save battery cost.

  • 7 inch Basic Open Frame Video Screen
    7 inch Basic Open Frame Video Screen

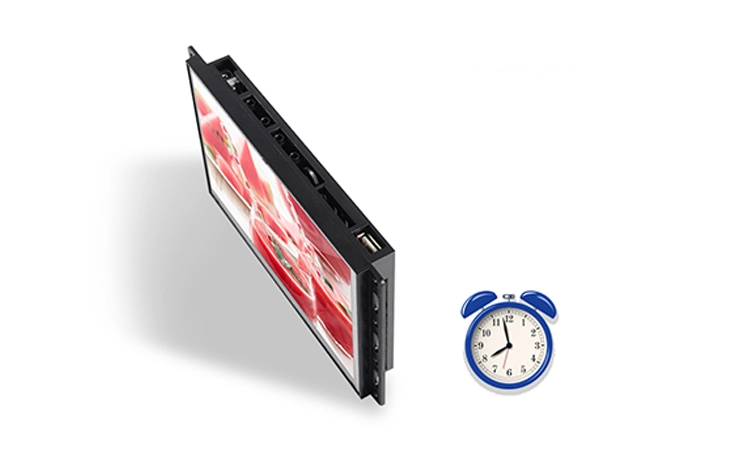

    Auto power on or power off at pre-set time.

  • 7 inch Basic Open Frame Video Screen
    7 inch Basic Open Frame Video Screen

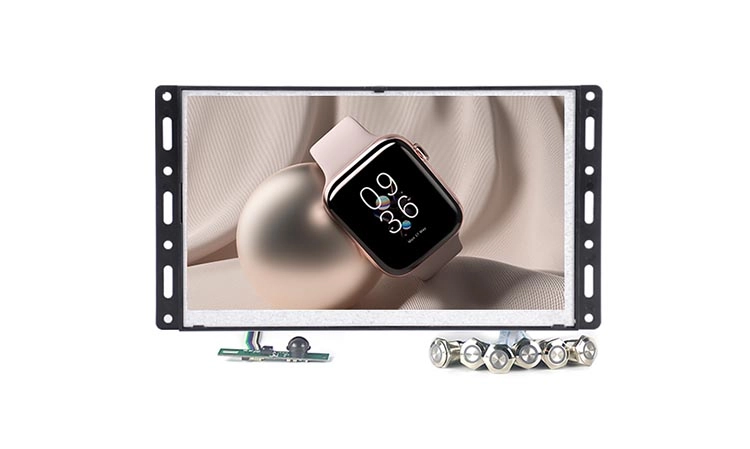

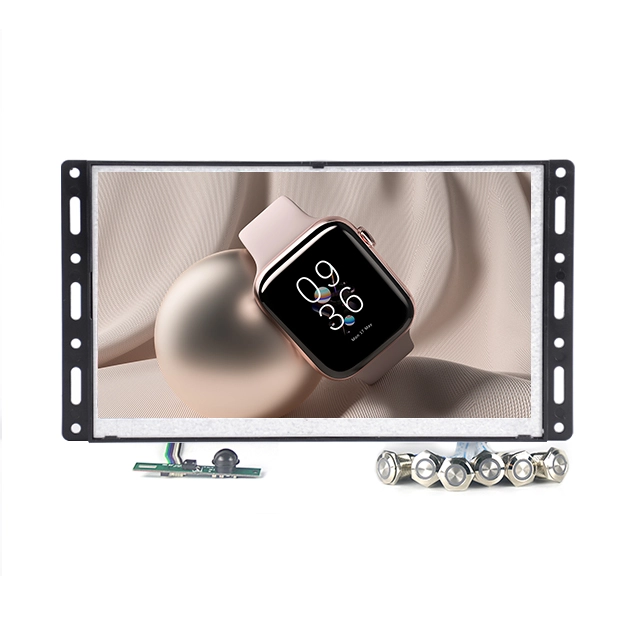

    Optional features:


    1.Push button (play specified files from selected folders by pressing the push button)

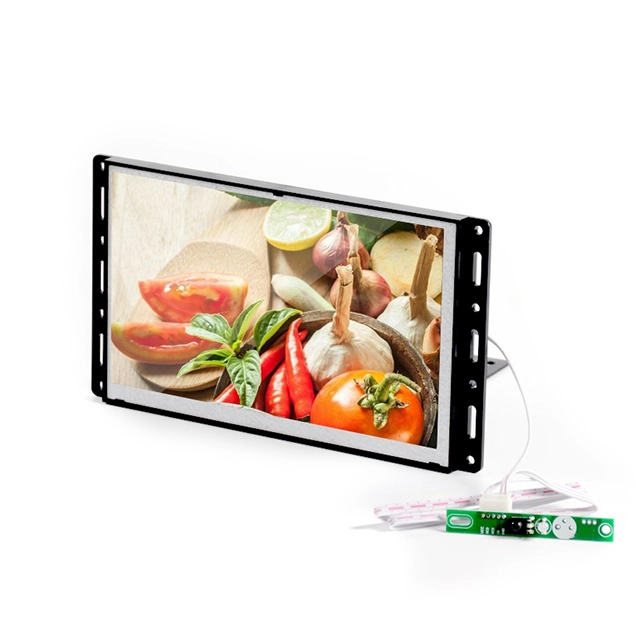

    2.Motion sensor (auto power on / off with or without detecting moving body)

LCD Monitor Screen Tech Spec


ModelSAD0705KShell colorStandard: black
Open Frame or EnclosedOpen FrameLCD Panel7inch
Resolution800*480Display Ratio/
Brightness220cd/m2Contrast500:1
Colour16.7MVisible Angle70/70/50/70
Response Time8msLife Time(hrs)>20000 H
Visible Area152.4×91.44mm(H×V)Outline dimension188.6*103.6*23.7mm
CPUATJ229R2GPU/
MemorySDRAM 512MROM NAND flash/
Decoded ResolutionSupport 1080PRTC Real-time ClockSupport
Switch Time SettingSupportSystem UpdateSD card update
OSUCOSExternal InterfaceDC IN/DC-SW/Earphone*4/V0L-SW/SD/USB
Touch Panel/Camera/
Internet Support/SpeakerSize: ∅30MM, speakers 8R 1W*2
External PortSupport SD/U flash diskInputAC 100-240V
OutputDC 12V/2APower consumption(Watt)≤4W
Standby(Watt)≤1WMaterialABS material injection process
Installation75*75VESA Wall MountImage FormatJPEG/BMP/GIF/PNG
Audio FormatMP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)Video FormatMP4/RMVB/AVI/H.264
Control MethodRemote controlDefault LanguageEnglish
Menu LanguageSupport Chinese, EnglishStorage Temperature-20℃~60℃
Working Temperature-20℃~55℃Storage Humidity10%-75%
Working Humidity20%-80%RHProduct Weight(N.W. )0.8kg
Plug TypesUS, EU, AU, UK OptionalPackage SizeA single package: 225*55*357mmBulk packages: 565*441*166mm
Packaging22pcs/Package Net weight: 20kg (offer reference only)AccessoriesUser Guide, Instruction Book, Warranty, Desiccant
Optional1. Motion Sensor 2. Push ButtonNotes/
