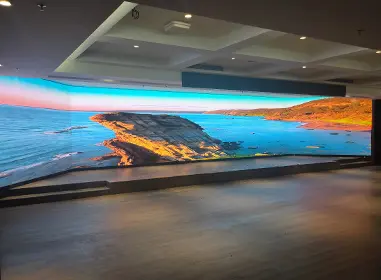

KERCHAN Indoor/Outdoor Giant LED Screen Wall is made of many small led display units, with plenty of large display area, it can play wall-size video and leave the audience with breathtaking visual effects. Giant LED Screen Wall has been known as a popular commercial advertising tool found in a variety of areas including retail stores, high streets, shopping malls, hotels, airports etc.

  • Custom Indoor/Outdoor Giant LED Screen Wall Information

    Custom Indoor/Outdoor Giant LED Screen Wall Information

    Pixel Pitch: 1.875mm
    Pixel Pitch: 1.875mm
    Module Size (mm): 240x120x4.5 (Width x Height x Thickness)
    Module Size (mm): 240x120x4.5 (Width x Height x Thickness)
  • Ultra Contrast Ratio

    Ultra Contrast Ratio

    A black lamp is used instead of the white lamp to improve the contrast of the led screen(up to 6000:1), presenting the most perfect picture quality.

  • High Gray Scale Display

    High Gray Scale Display

    Higher gray scale under low brightness to make the picture have rich layers and present more details in a clear vision.

  • Rapidly loading the fast-paced action sequences

    Rapidly loading the fast-paced action sequences

    Ns-scale response time ensures the fast-paced action sequences are loaded without delay and enhance visual continuity.

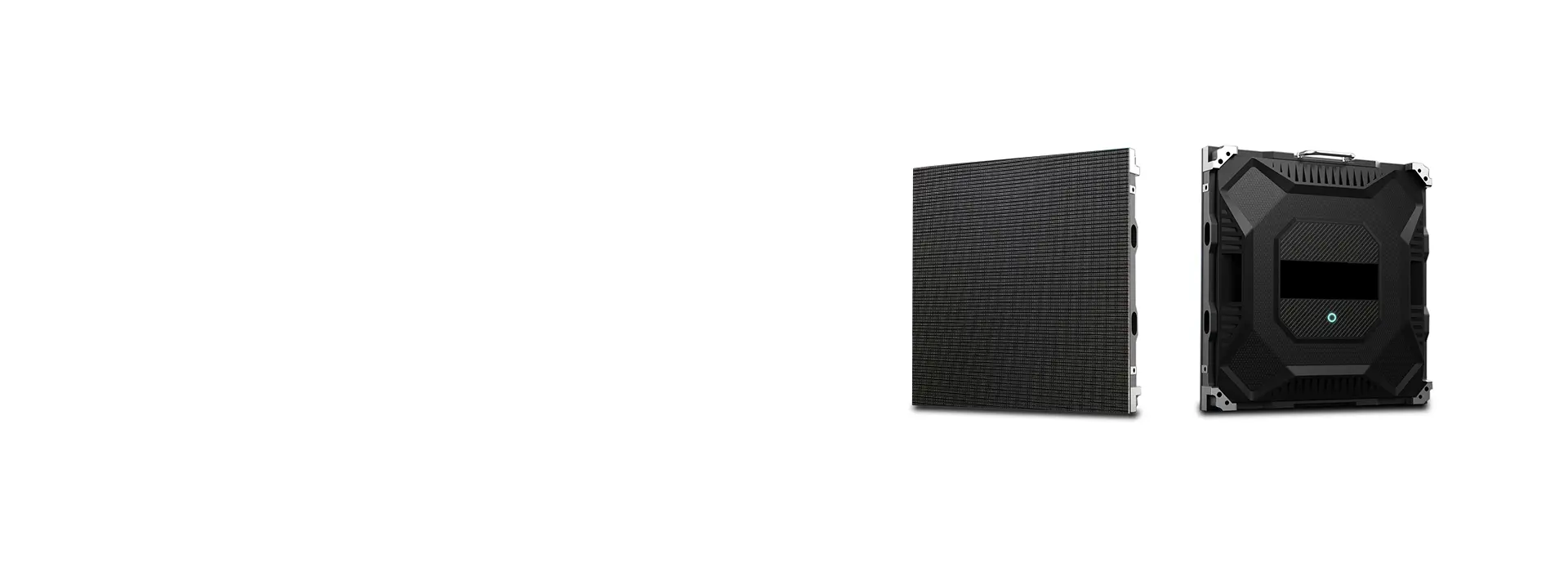

  • Convenient Maintenance

    Convenient Maintenance

    Supporting front & rear maintenance and installation; No need to leave space for the maintenance lane.

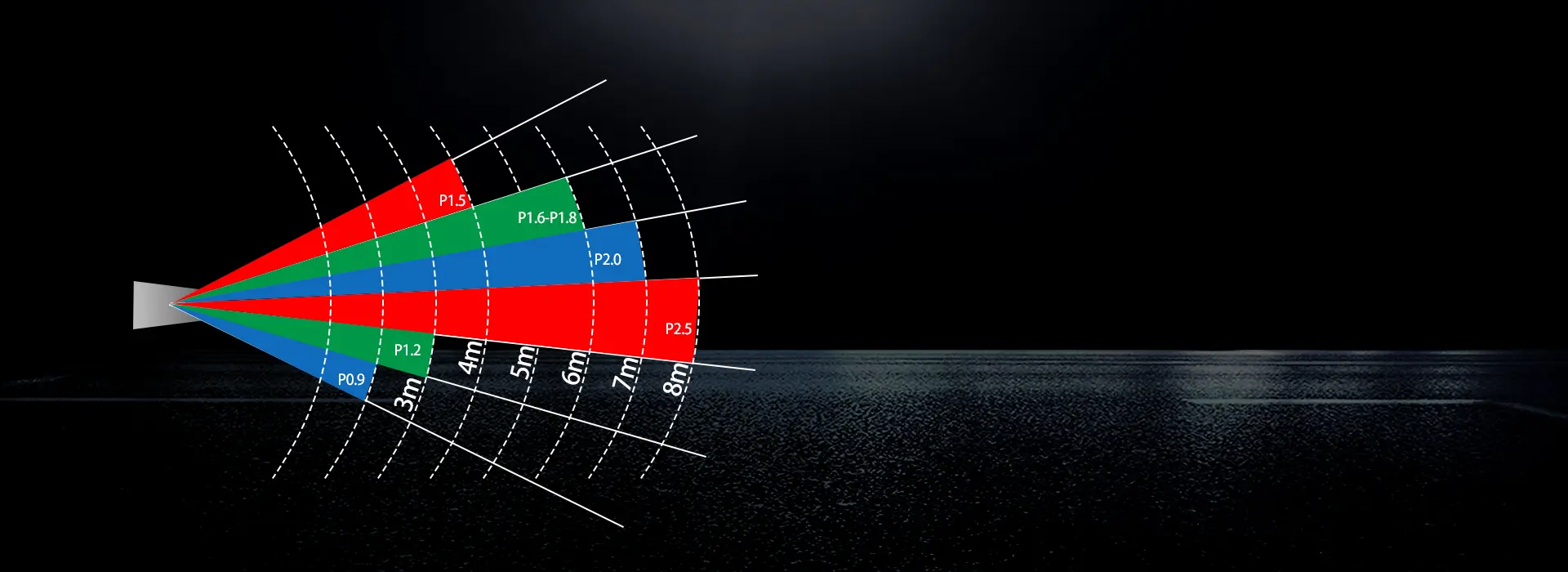

  • Excellent up-close viewing experience

    Excellent up-close viewing experience

    Smaller pixel pitch and higher pixel density to make sure the picture come with less graininess even when watching the video at a closer distance.

Custom Indoor/Outdoor Giant LED Screen Wall Applications
  • Custom Indoor/Outdoor Giant LED Screen Wall Applications

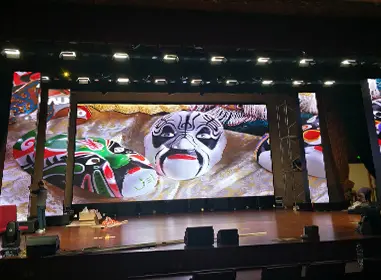

    Stage
  • Custom Indoor/Outdoor Giant LED Screen Wall Applications

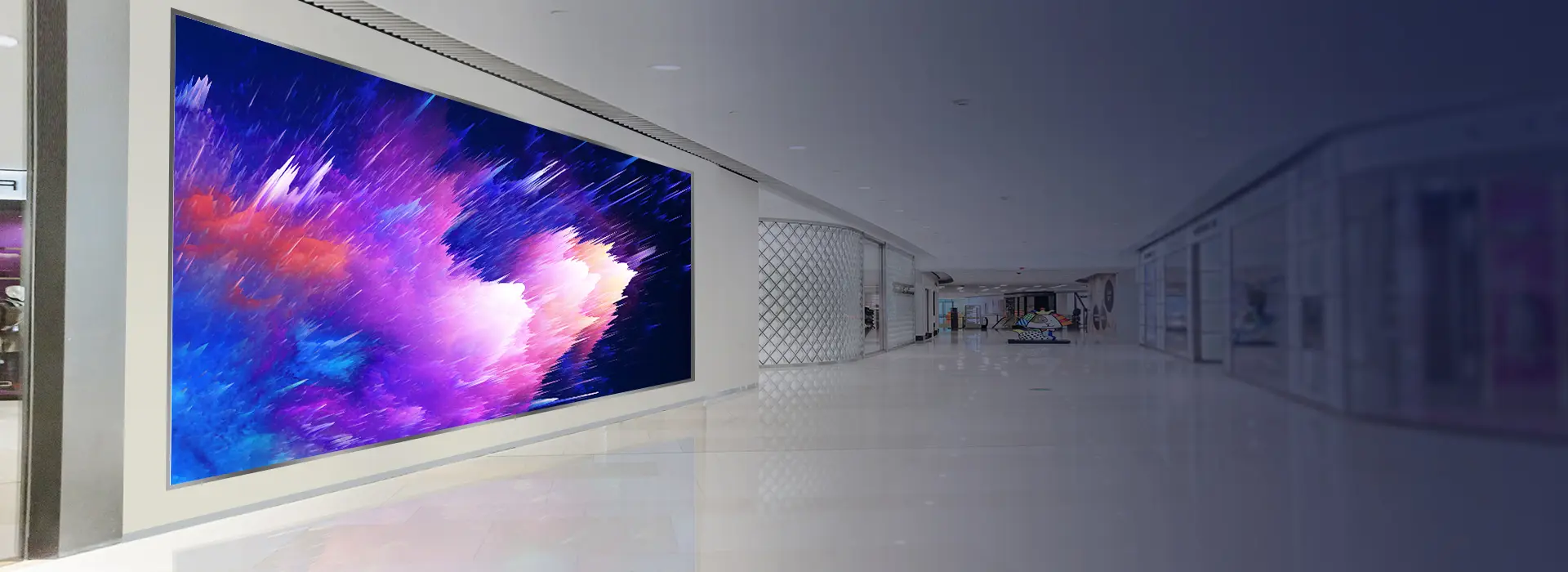

    Hall
  • Custom Indoor/Outdoor Giant LED Screen Wall Applications

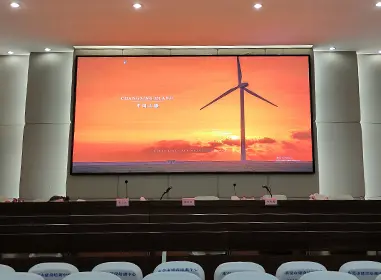

    Meeting Space
  • Custom Indoor/Outdoor Giant LED Screen Wall Applications

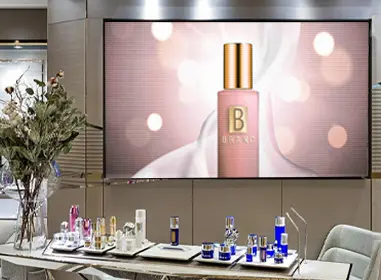

    Retail Chain Store
Tech Spec
Giant LED Screen Wall Parameter
Pixel Pitch1.875Pixel Configuration1R1G1B Full Color
EncapsulationSMD1515Pixel Density284444 dots/m2
Module Size240x120x4.5mm (WxHxD)Module Resolution128x64dots
Scan Mode1/30 SStandard Driver ICICN2153
Refresh Rate3840HzFrame Rate60Hz
Gray Scale14-18bitData Interface Type
Module Back Cover Materials
Module Weight
Cabinet Size480x480x55Cabinet MaterialDie-Casting Aluminum
Cabinet Evenness≤ 0.2mmIP Protection GradeIP30
Assembly Maintenance TypeFront & RearBrightness700-800nits
Color Temperature3000—12000K AdjustableBrightness Evenness≥95%
Horizontal Vertical View Angle≥140°/≥120°Contrast Ratio6000:01:00
Module Input Voltage DC4.2V-5VModuel Maximum Current DC2.8A
Module Maximum Power Consumption14w/pcsWorking Input Voltage AC100—240V
Peak Power Consumption485w/m2Average Power Consumption138 w/㎡
TypicalLife Span100000 HoursWorking TemperatureWorking -20℃~+50℃
Working Humidity10~85%RH (No Condensation)Storage TemperatureStorage -20℃~+35℃
Storage Humidity30~65%RH (No Condensation)Notes/
