With KERCHAN ultra-flexible PCB, you can exert your imagination as much as you like to build LED Screen displays in any shape, such as cylinder, round shape, wave, arc shape etc., application environment includes retail stores, science and technology museum, art museum and creative centre, to vividly present audience a strong visual novelty and impact.

  • Custom Flexible LED Screen Information

    Custom Flexible LED Screen Information

    Pixel Pitch: 1.25/1.579/1.667/1.875/2/2.5/3
    Pixel Pitch: 1.25/1.579/1.667/1.875/2/2.5/3
    Module Size (mm):240x120x8.6 (Width x Height x Thickness)
    Module Size (mm):240x120x8.6 (Width x Height x Thickness)
  • Ultra Contrast Ratio

    Ultra Contrast Ratio

    Up to 5000:1 high contrast ratio can produce more vibrant colors by improving the contrast of light and shade, bringing an immersive viewing experience.


  • Excellent wide visible angle

    Excellent wide visible angle

    Achieve about 160°horizontal/140°vertical viewing angle, offering a wide and clear vision.

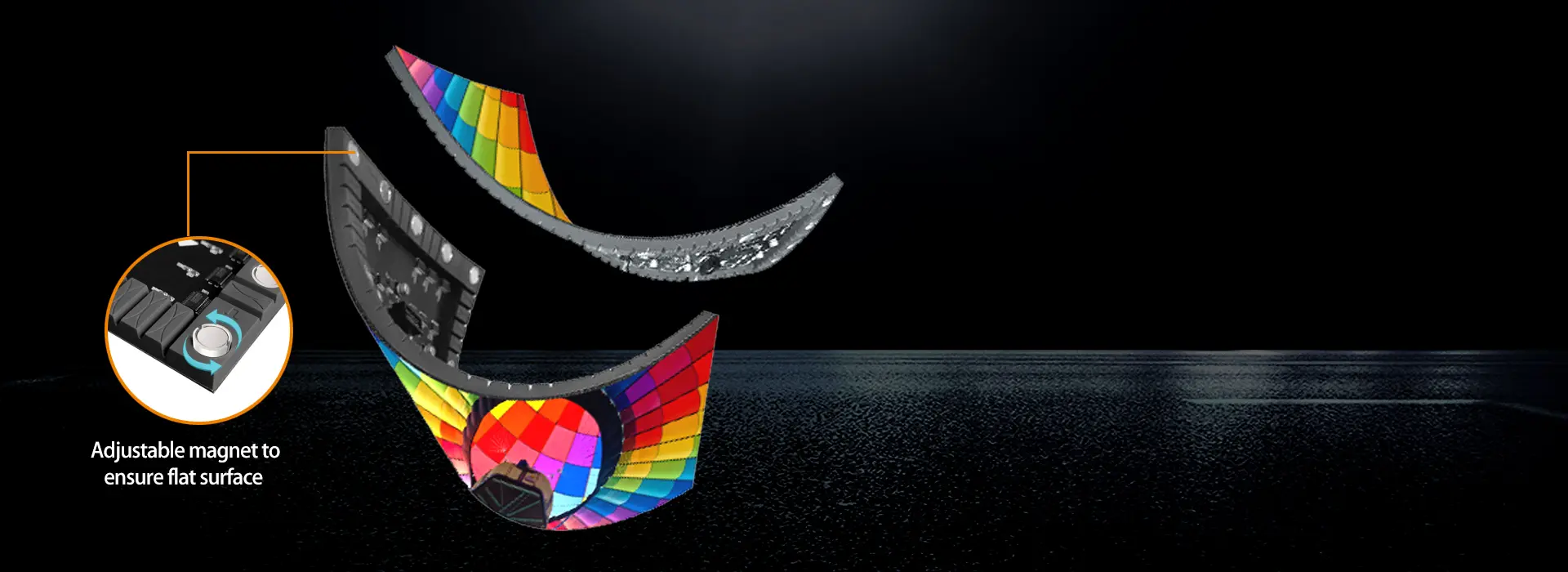

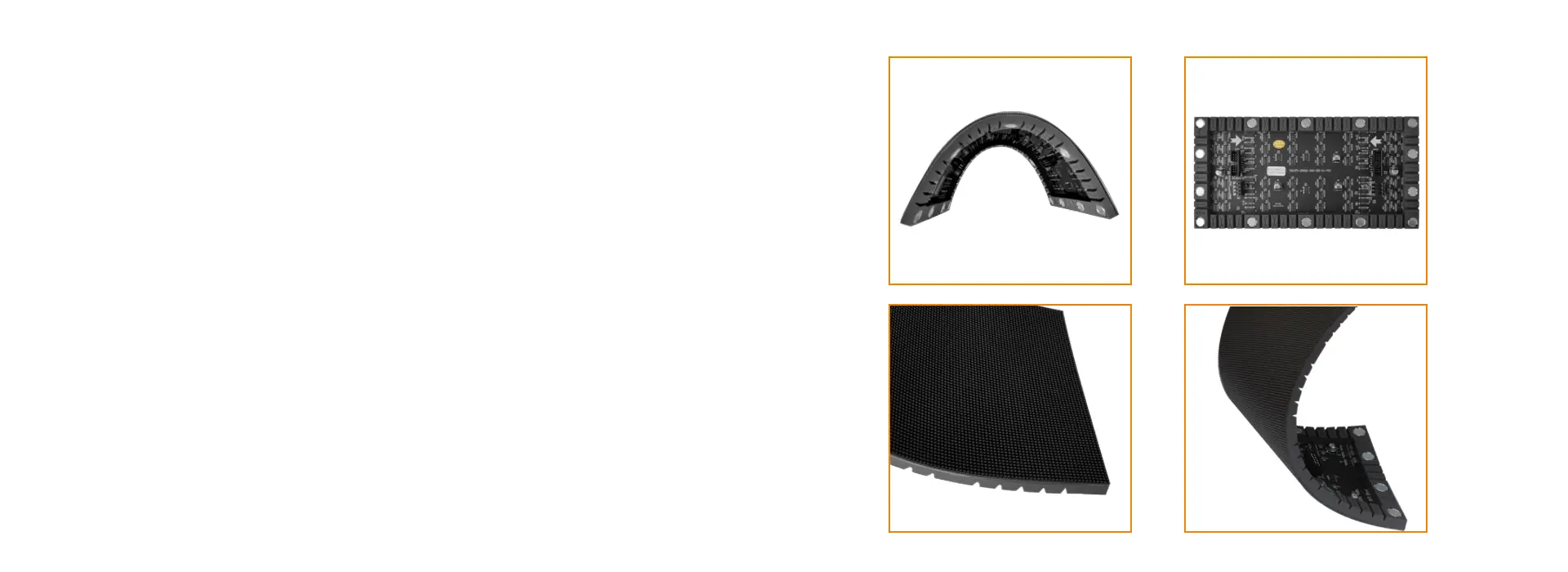

  • Flexible led screen

    Flexible led screen

    Each flexible led screen module was paired with a 14pcs strong magnet to improve the smoothness of the surface.

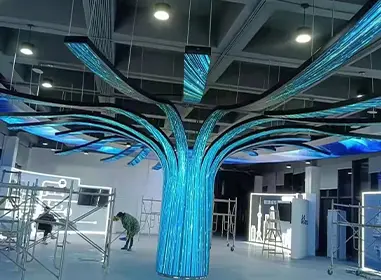

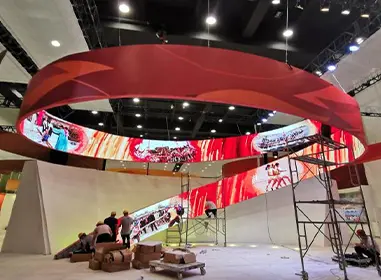

  • Flexible enough to transfer your imagination into reality

    Flexible enough to transfer your imagination into reality

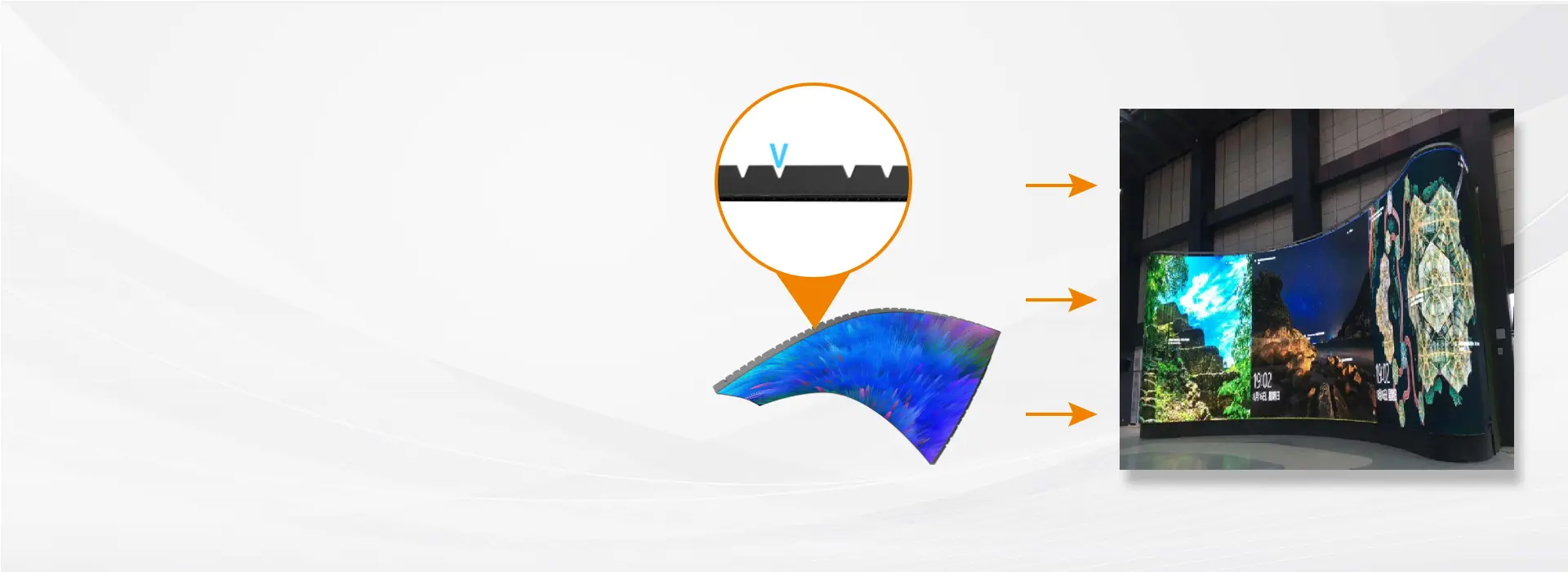

    High-quality silicon rubber material with a deep V design delivers you the best flexibility, any curve, column or another shape-led video screen in any arc angle is all available

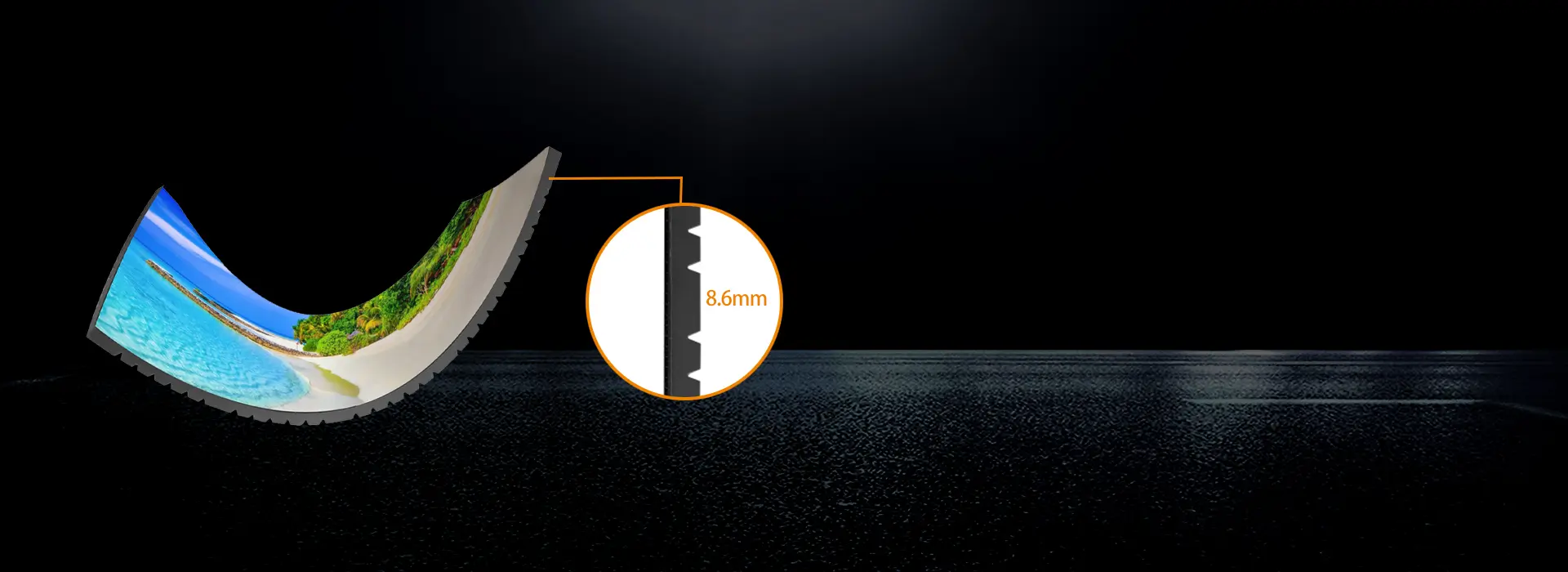

  • Supper-thin module design

    Supper-thin module design

    The flexible module's thickness is only 8.6mm, it is very easy to be installed even when space is extremely limited.

Custom Flexible LED Screen Application
  • Custom Flexible LED Screen Application
    Bank
  • Custom Flexible LED Screen Application
    Convention Centre
  • Custom Flexible LED Screen Application

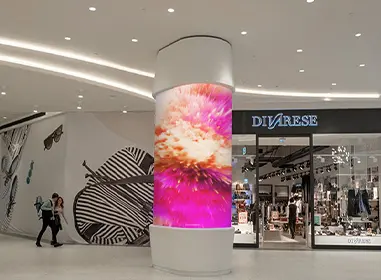

    Shopping mall
  • Custom Flexible LED Screen Application
    Science and technology museum
Tech Spec
Flexible LED Screen Parameters
Pixel Pitch1.579Pixel Configuration1R1G1B Full Color
EncapsulationSMD1010/SMD1212Pixel Density401111.0dots/m2
Module Size240x120x8.6mm (Width x Height x Thickness)Module Resolution152x76dots
Scan Mode1/38Standard Driver ICICN2065
Refresh Rate3840.0HzFrame Rate50&60Hz
Gray Scale12-16bit adjustableData Interface TypeHUB75
Module Back Cover MaterialsSilicon Rubber Soft BracketModule Weight0.203Kg/pcs
Cabinet SizeCan be ODM freely upon module sizesCabinet MaterialPowder Coated Sheet Metal Steel Cabinet
Cabinet Evenness≤ 0.3mmIP Protection GradeIP45
Assembly Maintenance TypeFront & Rear Assembly / MaintenanceBrightness≥650nits
Color Temperature3000—10000K AdjustableBrightness Evenness≥97%
Horizontal Vertical View Angle≥160°/≥140°Contrast Ratio5000:01:00
Module Input Voltage DC5.0VModuel Maximum Current DC3.5A
Module Maximum Power Consumption17.5w/pcsWorking Input Voltage AC110—220V
Peak Power Consumption1000.0w/m2Average Power Consumption340.0w/m2
TypicalLife Span100000.0hrsWorking Temperature-10—50℃
Working Humidity20—85%RH (No Condensation)Storage Temperature-20—60℃
Storage Humidity20—80%RH (No Condensation)Notes/
