Android Advertising Display SAD2830KL

  • Horizontal or vertical installation.

  • Built-in rooted Android or HDMI input.

  • Boot or shutdown per designed schedule.

  • Support split screen, and multimedia display.

  • Touch screen is optional.

  • With CE FCC ROHS certification.


Contact Us
Features Tech Spec Download

Android Advertising Display Features

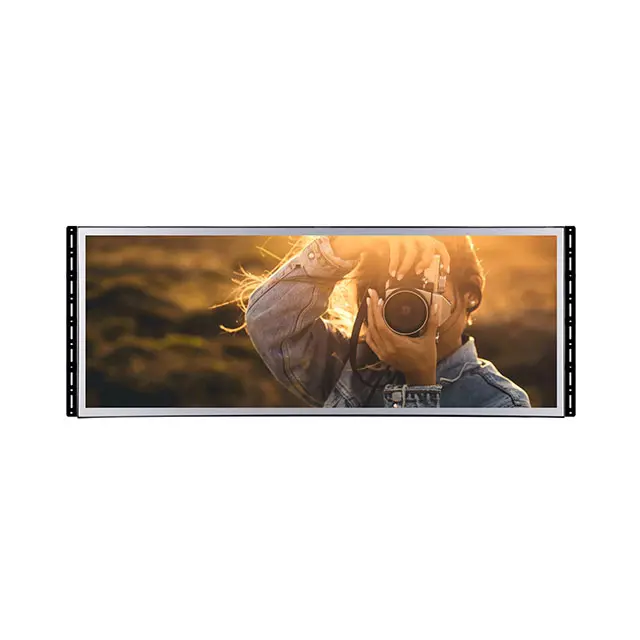

  • 28.3'' Open Frame Shelf Edge LCD Display
    28.3'' Open Frame Shelf Edge LCD Display

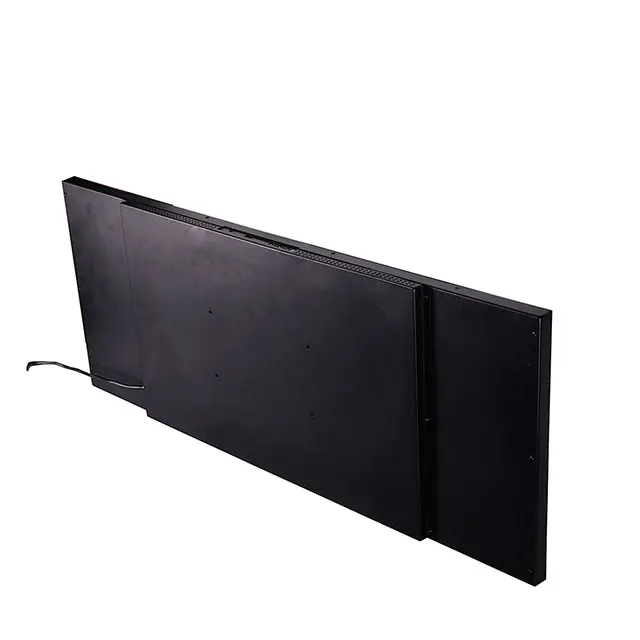

    Open frame design which easy for integrated into POP displays.

    Bar space, which makes advertising scenes flexible and rich, provides broad creative space for products, and is outstanding in advertising machines.

    Horizontal or vertical installation.


  • 28.3'' Open Frame Shelf Edge LCD Display
    28.3'' Open Frame Shelf Edge LCD Display

    Full view angle. Present a super-clear picture.

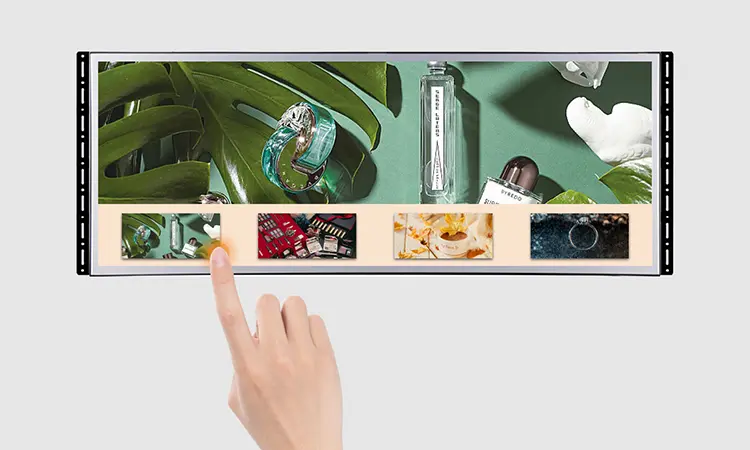

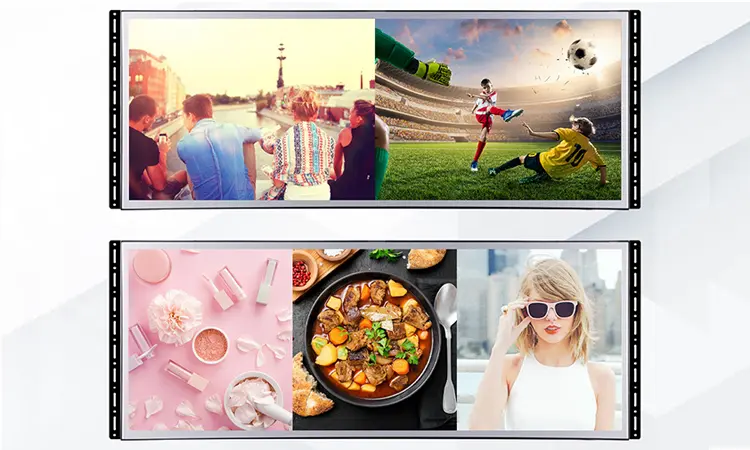

    Support full screen diplay and split screen display.


  • 28.3'' Open Frame Shelf Edge LCD Display
    28.3'' Open Frame Shelf Edge LCD Display

    Auto copy videos & pictures, auto-save after power-off.

    Built in rooted Android or HDMI input.

    Install K-smart APK by default. APK can interact with machine, switch on and off automatically, play multiple videos at the same time, change boot logo and other functions.

    Unique sizes can be customized.

    Touch screen is optional.


  • 28.3'' Open Frame Shelf Edge LCD Display
    28.3'' Open Frame Shelf Edge LCD Display

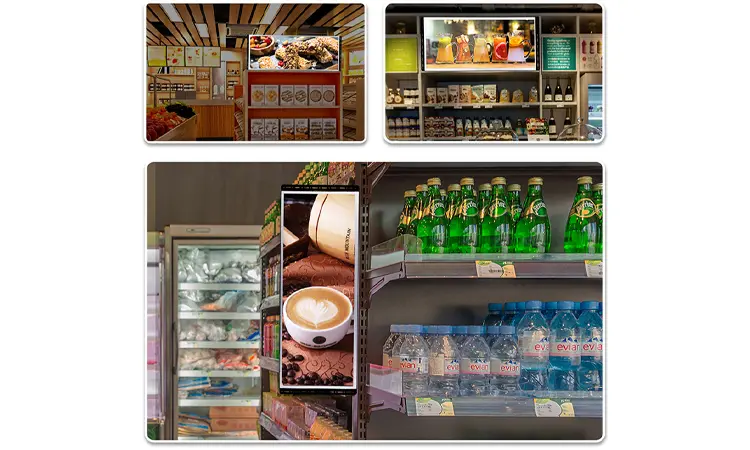

    Kerchan Stretched Bar LCD Screens refers to a strip bar LCD display with a larger aspect ratio than ordinary displays. Because of its diverse sizes, clear displays, and rich functions, it is used in retail, transportation, banking, enterprises, and other industries, especially in the retail industry.

Android Advertising Display Tech Spec

ModelSAD2830KLShell colorStandard: Black
Open Frame or EnclosedOpen FrameLCD Panel28.3inch
Resolution1920*443Display Ratio/
Brightness700cd/m2Contrast1000:1
Colour16.7MVisible Angle178/178
Response Time5msLife Time(hrs)20000H
Visible Area701*163.5mm(H×V)Outline dimension738.5*201*36mm
CPUA64, Corte-A53,1.5GHzGPUMali400 MP2
MemoryDDR3 1GBROM NAND flash8GB
Decoded ResolutionSupport 1080PRTC Real-time ClockSupport
Switch Time SettingSupportSystem UpdateSD card update

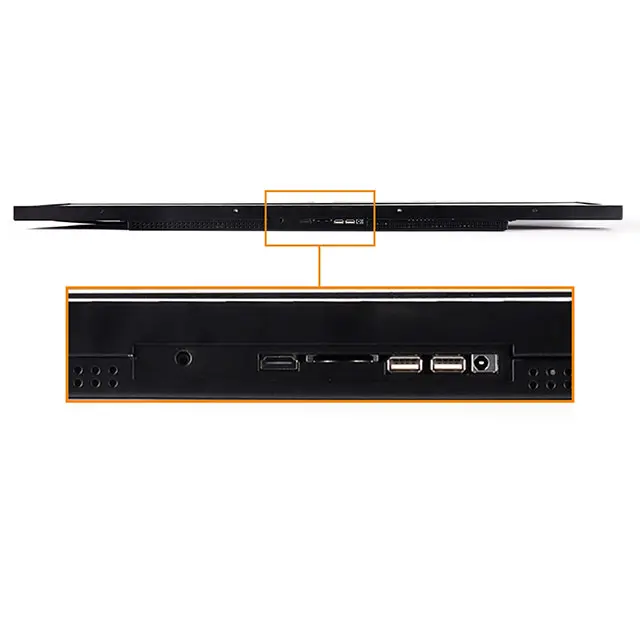

OSAndroid 6.0External InterfaceUSB*2//SD card/HDMI OUT/DC 12V
Touch PanelNot SupportCamera/
Ethernet SupportNot SupportSpeaker/
External PortSupport SD/U flash diskInputAC 100-240V
OutputDC 12V/3APower consumption(Watt)≤25W
Standby(Watt)≤1WMaterialSPCC material injection process
Installation100*200VESA wall mountImage FormatJPEG/BMP/GIF/PNG
Audio FormatMP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)Video FormatMPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC...
Control MethodRemote control/MouseDefault LanguageEnglish
Menu LanguageSupport Chinese, EnglishStorage Temperature0℃~40℃
Working Temperature-20℃~55℃Storage Humidity10%-75%
Working Humidity20%-80%RHProduct Weight(N.W. )10KG
Plug TypesUS, EU, AU, UK OptionalPackage SizeA single package: 846*73*313mm
Packaging1 units/box Box Weight: 11kg (Only for reference)AccessoriesUser Guide, Instruction Book, Warranty, Desiccant
Optional/Notes/
